Large Format Cutting Machines

ACXUS Cutting Machines Solutions Empowering Printing & Advertising

As printing and packaging demand precision and speed, ACXUS cutting machines deliver automation, accuracy, and sustainability. From signs to displays, our flatbed and roll-to-roll plotters provide unmatched cutting, engraving, and punching performance. Built with intelligent control, ACXUS ensures efficiency, reliability, and superior quality—helping businesses achieve faster turnaround, adaptability, and long-term growth.

Why Choose ACXUS

One-stop cutting solution
- ACXUS brings together two world-class brands — RUK (automation, cost-effective versatility) and Mimaki (renowned Japanese precision and reliability).
- Customers can compare and choose the machine that best fits their production needs, all under one roof.
Expert consultation & guidance
- ACXUS understands the strengths of both brands and helps customers select the right solution based on industry, material, and budget.
- No bias toward a single brand — the advice is practical and focused on your ROI.
Local service & technical support
- Fast response, spare parts availability, and professional training ensure smooth machine operation.
- ACXUS technicians are trained across both brands, offering broader expertise and problem-solving capability.
End-to-end reliability
- Genuine machines with full warranty protection.
- ACXUS provides not only the machine but also workflow integration, software advice, and after-sales support to maximize performance.
Future-proof partnership
- With ACXUS, you’re not tied to one brand. As your business grows, you can scale or diversify with both RUK and Mimaki solutions.
- A long-term partner who evolves with your production needs.

Featured Models

View this post on Instagram

A post shared by Acxus Malaysia (@acxusmalaysia)

RUK Cutting Machines Comparison

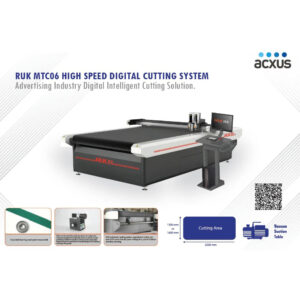

Feature / Advantage	RUK ACM-1625 Cutting Machine	RUK MKC-L Series Cutting Machine	RUK MTC06 High Speed Digital Cutting Machine

Frame & Build	Rigid steel frame, large flatbed structure, built for multi-function heavy-duty use	One-step steel frame structure, detachable for easy transport	One-piece molded frame, screw-free, highly durable
Cutting Platform	Large 1600 × 2500 mm vacuum flatbed, supports multiple material types	Aviation-grade aluminum alloy, multi-contact keel, flatness auto-adjust system	Aviation-grade aluminum alloy, multi-contact keel, durable & adjustable
Tool System	Multi-functional: contour cutting, creasing, bevel cuts, punching, V-cut options	Servo + pneumatic tool control, Swiss vibration tool (17,000 RPM), digital depth adjustment	Automatic tool setting, servo-driven, 24/7 cutting
Feeding System	Static/vacuum table for sheet and board handling	Automatic feeding with crawler felt for material collection	Continuous coil feeding system for unlimited length
Control & Operation	CCD camera for registration, digital control system	CCD visual positioning system with German high-def camera	Proprietary HMI control, 7″ touchscreen, one-click data changes
Safety	Anti-collision protection sensors	–	Intelligent anti-collision system for operator protection
Precision & Stability	±0.1–0.2 mm (typical flatbed), servo-driven with vacuum hold	Imported synchronous belt, curve optimization improves efficiency by 30%	Imported servo + synchronous belt for smooth, high-speed accuracy
Software Compatibility	Compatible with CAD/CAM workflows, supports contour registration	Works with CAD/CAM workflows, CCD-assisted cutting	Works with all major CAD software
Applications	Carpet Cloth Toy Fashion Tailoring Home Decoration Leather Lightbox Panel PVC Board Self Adhesive Board	Tag ABS Car Allowance Corrugated Cardboard EPS Grey Card Stock Paper Jam Magnetic Sticker PP PVC Reflective Film Self-Adhesive	Reflective Photo Printing Leather Gift Box Flag Material Corrugated Board Bubble Word Mobile Phone Film

Mimaki Cutting Machines Comparison

Feature	CG-AR Series	CG-FXII Plus Series

Target Segment	Entry to mid-level	Professional / high-end
Media Width	Up to 1,250–1,550 mm (model dependent)	Up to 1,600–1,880 mm
Cutting Speed	Up to 73 cm/s	Up to 100 cm/s
Precision	±0.2 mm repeatability	±0.2 mm repeatability
Special Functions	Crop mark detection, half-cut, ID Cut	Crop mark detection, half/over-cut, ID Cut, clamp pressure control
Applications	Stickers, decals, labels, small signage Label Packaging Paper Craft Window Display	Large-format vinyl, decals, complex contour cutting Name Stickers Window Stickers

Laser & Router Cutting Machine Comparison

Feature	CO₂ Laser Cutting Machine	CNC Router Cutting Machine

Best For	Acrylic, plywood, MDF, paper, leather, fabric; fine details & smooth edges	Wood, MDF, plywood, solid surface, aluminum, ACP, plastics; deep cuts & 3D carving
Working Area (Typical)	1,300 × 900 mm / 1,600 × 1,000 mm (model-dependent)	1,300 × 2,500 mm / 1,500 × 3,000 mm (model-dependent)
Cut / Feed Speed	Up to ~600 mm/s (material dependent)	Feed rate up to ~20,000 mm/min (tool & material dependent)
Precision / Repeatability	Up to ±0.1 mm	Up to ±0.2 mm
Cutting Thickness (Guide)	Acrylic up to ~20 mm; plywood up to ~12 mm	Wood/MDF 25–50+ mm; aluminum 6–10 mm (tooling & passes)
Spindle / Laser Power	60–300 W CO₂ laser tubes (options available)	2.2–9 kW spindles (air/water cooled; options available)
Special Functions	Auto-focus, honeycomb & knife tables, red-dot preview, CCD camera for print-and-cut	Vacuum table, dust extraction, tool length sensor, auto tool-changer (ATC) options
Software & Workflow	Supports common vector formats (AI, PDF, DXF); nesting & camera alignment	CAM toolpaths (2D/2.5D/3D), pocketing, profiling, drilling; G-code compatible
Edge Quality	Flame-polished look on acrylic; minimal finishing	Depends on tooling; sanding/finishing may be required
Safety & Extraction	Enclosed cabinet options, fume extraction, interlocks	Chip/dust extraction ports, safety guards, limit switches
Typical Applications	Signage & acrylic displays POP stands & merchandising Packaging prototypes & die-cuts Leather goods & craft products Architectural models & stencils	Furniture & cabinetry components 3D carving & reliefs Aluminum composite panels (ACP) Jigs, fixtures & template making Doors, panels & countertops
Who Should Choose	Shops needing clean acrylic edges, fine detail, and fast turnaround on thin to medium materials	Workshops needing heavy-duty depth, large sheets, and versatility across woods & soft metals
	Ask About Laser Models	Ask About Router Models

Large Format Cutting Machine FAQ

1. What’s the difference between RUK flatbed cutting machines and Mimaki roll-to-roll cutting plotters?

RUK flatbed machines cut a wide range of rigid and flexible materials (cardboard, foam board, acrylic, composites), making them ideal for packaging, displays, and industrial signage. Mimaki plotters specialize in thin, flexible roll media (vinyl, stickers, labels), perfect for sign-making and decals.

2. Which machine is better for thick or rigid materials?

For heavy-duty applications up to 50 mm thick, choose RUK flatbed cutting machines. Mimaki plotters are better for lightweight roll media and not suitable for rigid substrates.

3. Do both machines support contour cutting?

Yes. Both systems support contour cutting with crop marks. RUK uses a CCD camera system for flat materials, while Mimaki plotters offer continuous crop mark detection and ID Cut for automated roll-to-roll production.

4. How do I know which machine suits my business?

That’s where ACXUS adds value. We don’t push a single brand—we help you choose the right system based on your materials, applications, and growth plans. Whether you need RUK’s industrial versatility or Mimaki’s roll-to-roll precision, ACXUS provides expert advice, local training, and reliable after-sales support.
