Roll and Rigid (Board) - All in One Printer
01
Expand your range of applications

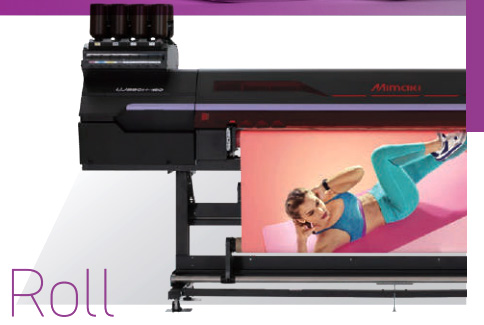

The UJ330H-160 supports roll media that were previously difficult to handle.
Even thin films and fabrics, which were difficult to transport with conventional grit rollers, can now be conveyed stably. This ensures high-quality printing without damaging the surface of the material.
Reliable performance for your existing applications
Indoor Signage
Retail Interior Décor
Floor Signage
Unlock new possibilities with challenging materials
Soft Signage
Space Divider / Tent Signage
Window Graphics
Bags, Shoes, and Vehicle Seats
*Material transport performance may vary depending on media type and specifications.
Pre-testing is recommended before production.
02
Boost your workflow efficiency

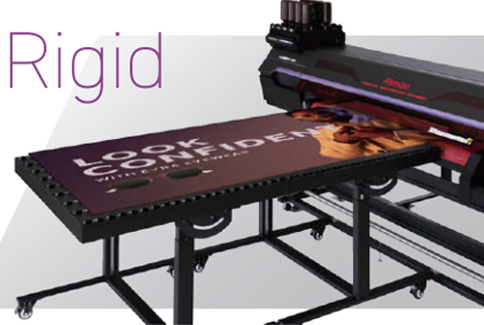

Achieve stable handling of rigid materials.
Direct printing onto a wide range of rigid board materials eliminates the need for costly outsourcing or labor-intensive mounting processes.
Large-format boards and lightweight boards prone to warping
Outdoor Signage
Display Panels
Thick signage materials
Channel Signage

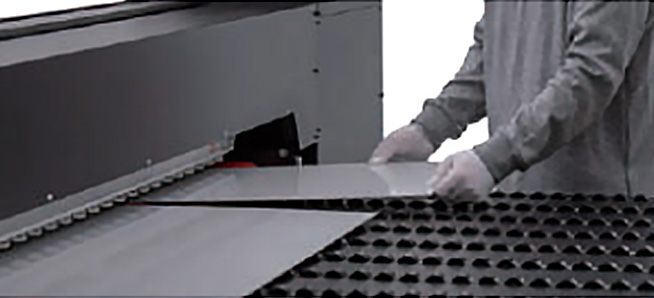

Simultaneous printing of multiple boards
Reduce media changeover time and improve your overall workflow efficiency.
03
Fast, Beautiful Output with 330 Quality
Equipped with high-density and high-definition 330 Series print heads in a staggered configuration, the UJ330H-160 delivers solid, uniform fills to smooth, finely detailed gradations with a practical productivity of 14.0 sqm/h*.
*When using CMYK + White + Clear or CMYK LcLm + White ink sets.
Precise control of ink droplets as small as 4 pl
Each ink droplet is placed exactly where intended, delivering high-quality images with no visible graininess.
Beautiful solid fills with high-density ink
Three precisely controlled droplet sizes are combined to produce smooth, even solid areas. Larger droplets provide coverage,while smaller dots refine details to create rich gradations and outstanding image quality.

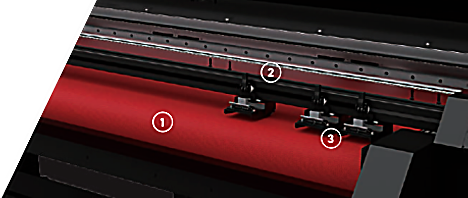

UV 3-Way Conveyor System
Heat-free UV technology minimizes the risk of media warping and deformation during printing, ensuring stable media transport.
Combined with Mimaki’s proprietary 3-Way conveyor system, the UJ330H-160 delivers reliable and stable output across a wide range of both roll and rigid media.

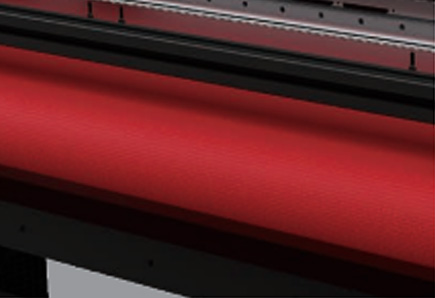

1Auto Vacuum
A powerful vacuum holds the media evenly across its surface during transport, preventing wrinkles and sagging.

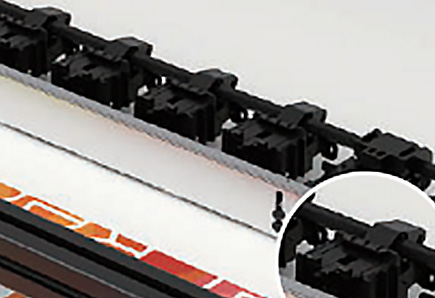

2Rear Clamp Roller
Suppresses lifting and warping of rigid media,ensuring stable media transport alignment.

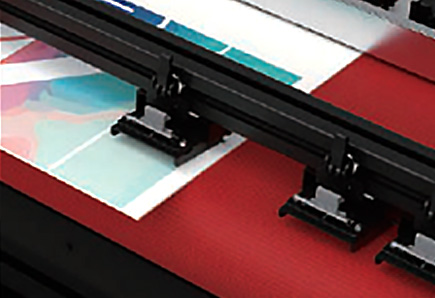

3Power Lock Roller
Suppresses warping at the front and edges of rigid media, ensuring stable transport even for large-format and warp-prone materials.
UV Printing adds value

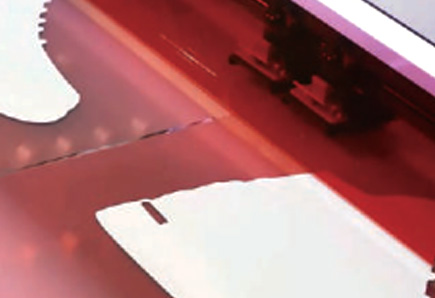

High-opacity white ink
Clear Ink for gloss and
matte finishes
Multi-layer printing expands
creative possibilities (up to 5 layers)
Produce different designs on a single sheet—ideal for double-sided window graphics.
Specifications
| Item | UJ330H-160 | |
|---|---|---|
| Print Head | On-demand piezo head (2 staggered layout) | |
| Print Resolution | Y：600, 1,200 dpi X：600, 900, 1,200, 1,800 dpi | |
| Head Gap |
Automatic nozzle-to-media distance adjustment 1.5 mm to 3.0 mm (in 0.1 mm div.), automatically adjusted by belt elevation. |
|
| Maximum Print Width | 1,610 mm (63.4") | |
| Media (Roll) |
Supported Media Width | 210 – 1,620 mm（8.3 – 63.8"） |
| Outer dia. | φ250 mm (9.8") or less | |
| Roll Weight | 45 kg (99 lb) or less | |
| Core dia. | 2 inches, 3 inches | |
| Take-Up Torque Limiter | Standard Setting: Low (adjustable from Low to High) | |
| Media (Rigid) |
Supported Media Width | 210 – 1,620 mm（8.3 – 63.8"） |
| Supported Media Length |
280 – 2,500 mm (11.0 – 98.4"), Print Length: 270 – 2,490 mm (10.6 – 98.0") Control allows up to 3,100 mm (122.0"), Print Length: up to 3,090 mm (121.7")*1 |
|
| Media Thickness | 50.8 mm (2") or less | |
| Media Weight | 25 kg (55.1 lb) or less (7 kg (15.4 lb) / ㎡ or less) | |
| Interface | Ethernet 1000 BASE-T (recommended) / USB2.0 Hi-speed | |
| Automatic Adjustment | DAS2 Equipped | |
| Power Specifications |
Single-phase AC 100 – 120 V ±10% / 8 A, Single-phase AC 200 – 240 V ±10% / 4 A, 50/60 Hz ±1% ×2 |
|
| Power Consumption |
Up to 800 W × 2; ≤ Inlet1 400 W / Inlet2 500 W during operation; ≤4.5 W × 2 in sleep mode |
|
| Operational Environment |
Temperature | 20 – 30 degC (68 – 86 degF) |
| Humidity | 35 – 65% RH (no condensation) | |
| Accuracy Guaranteed Temperature Range |
20 – 25 degC (68 – 77 degF) | |
| Dust Level | Equivalent to a typical office environment | |
| Dimensions (W × D × H) |
Main unit : 3,225 × 785 × 1,420 mm (126.9 × 30.9 × 55.9") Main unit + 1 Roller table set: 3,225 × 2,664 × 1,420 mm (126.9 × 104.9 × 55.9") Main unit + 2 Roller table set: 3,225 × 4,712 × 1,420 mm (126.9 × 185.5 × 55.9") |
|
| Unit Weight | 386 kg (851 lb) | |
*1 Operation beyond the specified supported range is possible, but not guaranteed.
Ink
| Item | Color | Item Code | Remarks |
|---|---|---|---|
|
ELS-170 GREENGUARD Gold Certified ink |
Cyan | ELS170-C-BA | 1 L Bottle |
| Magenta | ELS170-M-BA | ||
| Yellow | ELS170-Y-BA | ||
| Black | ELS170-K-BA | ||
| Light Cyan | ELS170-LC-BA | ||
| Light Magenta | ELS170-LM-BA | ||
| White | ELS170-W-BA | ||
| Clear | ELS170-CL-BA | ||
|
ELS-175 GREENGUARD Gold Certified ink |
Cyan | ELS175-C-BA | |
| Magenta | ELS175-M-BA | ||
| Yellow | ELS175-Y-BA | ||
| Black | ELS175-K-BA | ||
| Light Cyan | ELS175-LC-BA | ||
| Light Magenta | ELS175-LM-BA | ||
| White | ELS175-W-BA | ||
| Clear | ELS175-CL-BA | ||
|
LUS-210 GREENGUARD Gold Certified ink |
Cyan | LUS21-C-BA | |
| Magenta | LUS21-M-BA | ||
| Yellow | LUS21-Y-BA | ||
| Black | LUS21-K-BA | ||
| White | LUS21-W-BA |
Options
| Roller Table Assy | Ionizer - Require both items | |
|---|---|---|

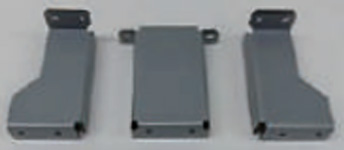

| Roller Table Assy | Ionizer Unit 160 | UJ330H Ionizer Connection Kit |
| OPT-01020 | OPT-J0545 | OPT-01024 |
*2 units per set
|
|
|
