UV flatbed printers have revolutionised the printing industry, giving businesses the ability to print directly onto rigid and semi-rigid materials with speed, precision, and durability [FESPA]. Unlike older printing methods, UV flatbed technology delivers instant curing and exceptional versatility, making it the go-to choice for signage, décor, packaging, and promotional product printing.

With resolutions ranging from 72 DPI up to 2400 DPI, these machines produce everything from cost-effective bulk jobs to stunning photo-quality prints. Adjustable print beds handle substrates from paper-thin sheets to thick panels, while advanced models include dedicated print heads for CMYK plus white, varnish, and textured effects.

This guide will show you how UV flatbed printing works, which materials are compatible, key limitations to be aware of, and the essential factors to consider when choosing a printer. We’ll also introduce two proven models in Malaysia: the ACFB6090 and ACFB2513 UV flatbed printers.

How UV Flatbed Printing Works

UV flatbed printers use UV-curable inks that solidify instantly under UV LED lamps. As ink is deposited, UV light follows immediately, curing it within milliseconds.

Benefits of UV flatbed printing:

• Instant drying — prints are ready for use immediately
• High resolution — sharp details without smudging
• Durable prints — resistant to scratches, fading, and weather
• Eco-friendlier — lower VOC emissions
• Energy-efficient — LED lamps last longer and run cooler than mercury lamps

Print Bed Sizes & Product Options

Choosing the right flatbed size depends on your application:

• ACFB6090 UV Flatbed Printer (600 × 900 mm) – Perfect for SMEs, signage shops, and promotional printing. Compact, reliable, and ideal for small to medium rigid items.

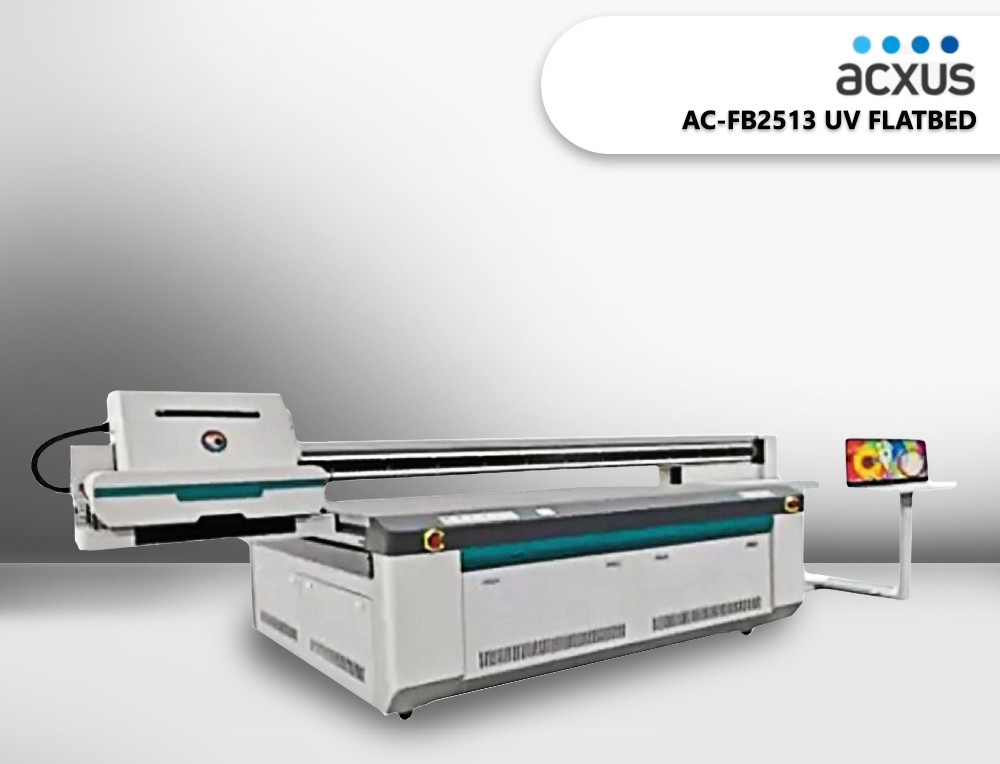

• ACFB2513 UV Flatbed Printer (2,500 × 1,300 mm) – Built for industrial-scale production, furniture panels, and large-format signage. Handles higher volumes with ease.

⚠️ Larger printers require more floor space and controlled environments. Keep your workspace between 20–28°C with humidity at 40–60%.

Compatible Materials

One of the greatest advantages of UV flatbed printers is their ability to print on diverse rigid substrates:

• Plastics: Acrylic, PVC, polycarbonate, polypropylene (with primers if required)
• Wood & MDF: Furniture panels, décor items, signage boards
• Glass & Ceramics: Bottles, mugs, tiles, trophies, decorative panels
• Metals: Aluminum, stainless steel, copper, brass (with pre-treatment)
• Leather & Textiles: Bags, wallets, furniture elements
• Slate & Stone: Coasters, plaques, home décor
• Paper & Cardboard: Packaging prototypes, premium printed finishes

Limitations of UV Flatbed Printing

Although highly versatile, UV flatbed printers face a few challenges:

• Reflective surfaces may cause premature ink curing inside nozzles
• Uneven materials with >2mm height variance may result in misting
• Curved objects are limited; rotary jigs help only for cylindrical items
• Low surface energy materials (like silicone) need special pre-treatment

Techniques for Better Results

• Use primers or gloss layers to improve adhesion
• Apply white ink underlays for opacity on transparent or dark surfaces
• Use rotary attachments for cylindrical substrates like bottles
• Apply flame or corona treatments to plastics for stronger adhesion
• Run adhesion tests (tape or crosshatch) before production

Choosing the Right UV Flatbed Printer

Key factors to evaluate:

• Bed size & Z-axis clearance — match to your product range
• Ink types — rigid inks for glass/metal; flexible inks for plastics and textiles
• RIP software — advanced packages allow white underlays, texture effects, and job costing
• Price & ROI — Entry-level models start around RM8,900, industrial units can exceed RM446,000. ROI is usually achieved within 6–12 months
• Supplier support — check for warranty, spare parts, training, and trade-in programs

The ACFB6090 and ACFB2513 stand out in Malaysia as trusted UV flatbed printers for businesses scaling from SME to industrial levels.

FAQs

Q1. What materials can UV flatbed printer print on?
UV flatbed printers print on plastics (PVC, acrylic, polycarbonate), wood, glass, ceramics, metals, leather, stone, paper, and cardboard. They can handle rigid substrates up to 80mm thick.

Q2. How does UV flatbed printing differ from traditional methods?
UV flatbed printers cure ink instantly with UV LED lamps, eliminating drying time and enabling direct-to-rigid material printing that traditional methods cannot achieve.

Q3. What are the limitations of UV flatbed printing?
Challenging substrates include reflective metals, uneven surfaces over 2mm, complex curves, and low-energy materials like silicone. These may require primers or treatments.

Q4. How can I improve results on difficult materials?
Use primers or gloss coats, apply white ink underlays, use rotary attachments for bottles, apply flame/corona treatments for plastics, and always test adhesion before production.

Q5. What should I consider when choosing a UV flatbed printer?
Look at bed size, Z-axis clearance, ink compatibility, RIP software, ROI, and supplier support. The ACFB6090 suits SMEs, while the ACFB2513 is ideal for large-scale operations.

Q6. Do UV flatbed printer come with training and installation?
Yes. Professional installation, calibration, and staff training are included to ensure smooth operation.

Q7. How often do UV flatbed printer need servicing?
Perform weekly nozzle checks and cleaning. Professional servicing is recommended every 6–12 months.

Q8. What inks are available and how should they be stored?
OEM and compatible UV inks are available, including white, metallic, and fluorescent. Store at 15–25°C, sealed until use. Shelf life is 12–24 months. Never mix different brands.

Q9. What are the best environmental conditions for UV flatbed printer?
Maintain 20–28°C with 40–60% humidity. Keep the printer dust-free, use a UPS or surge protector, and leave the printer on overnight for auto-maintenance cycles.

Q10. Do you provide warranty, spare parts, and trade-in options?
Yes. Printers include 1–2 year warranties, stocked spare parts, and trade-in programs when upgrading.

Conclusion

UV flatbed printer is redefining what businesses can achieve with direct-to-object printing. With instant curing, material versatility, and robust print quality, they open the door to new products and markets.

Models like the ACFB6090 and ACFB2513 give Malaysian businesses a reliable path to expand capacity, deliver faster turnaround, and achieve profitability within months. By choosing the right UV flatbed printer and maintaining it properly, your business can unlock new opportunities with confidence.
